The T&R product range includes glass wool and mineral fibre ceiling tiles, as well as tiles to suit specialised applications. This is supported by our grid and restraint systems, timber paneling, aluminium baffles, Eclipse Aluminium Partitioning Suite and our premier wool acoustic wall panel. We have proven solutions for GreenStar projects.



At T&R we are environmentally conscious and are limiting printing to reflect our company values. You will find our most up to date product information online.



Phonic

NRC
Medium
CAC
Medium

Phonic (Daiken) Dai Lotone

Masterspec

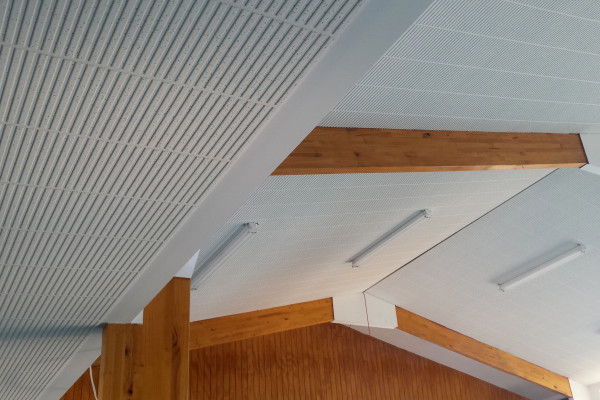

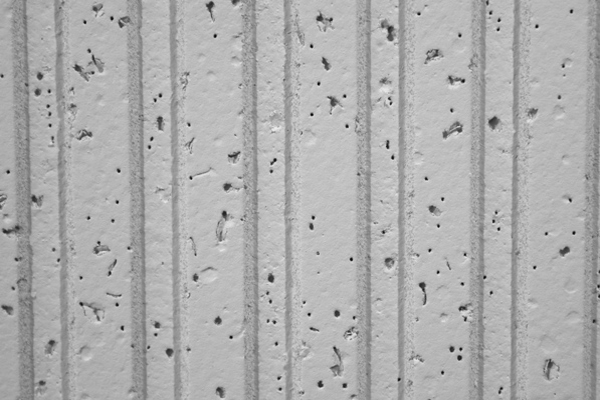

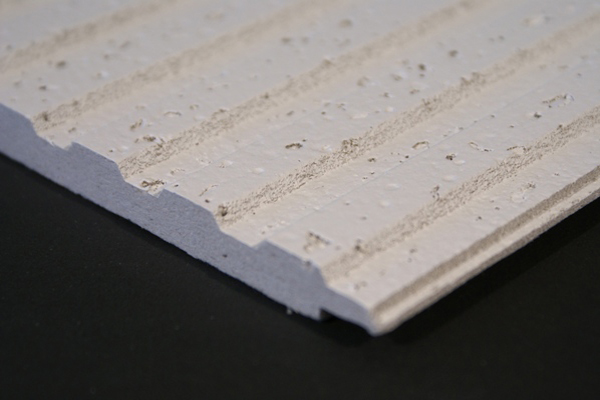

Dai Lotone is a high density tongue and groove mineral fibre ceiling tile with a white painted finish designed for direct fix applications to new and existing gypsum board or timber battens. This negates the need for an exposed grid enhancing its highly visual appeal. No additional painting required. Dai Lotone is a mid-range tile with superior noise absorption and efficient thermal insulation (more than 6 times of gypsum board), while resisting sound transmission more effectively than glass fibre products. Due to its high density and fine grained substrate, Phonic can achieve unique and high quality detailing in their tiles. These tiles have outstanding fire resistance.


SPECIFICATIONS

Phonic Dai Lotone T&G Staple and Glue Direct Fix Ceiling Tile

  • NRC 0.45
  • SAA 0.58
  • aw  0.45
  • CAC varies
  • LR1 (over 80%)
  • Moisture Content – 1.5%
  • Thermal Conductivity – 0.045 kcal/mhº C
  • Fire Test - ISO 5660 Part 1 - Group 1-S
  • Size Non Rib: 9mm Depth x [606 x 303]
  • Size Rib: 12mm Depth x [606 x 303] Other sizes on request
  • Colour – White

WARRANTY:

30 year lifetime system warranty to withstand conditions up to 40° – 95% relative humidity without visible sag when used with a T&R brand suspension system.

Emissions, Sustainability and the Environment - For Green Star rated projects, Phonic mineral fibre tiles were independently verified and meet the Greenguard Emission Certificate Standard

For product warranties, completion documents and test reports, please contact T&R Interior Systems: info@tris.co.nz
